I-WOB PRESSURE REGULATORS

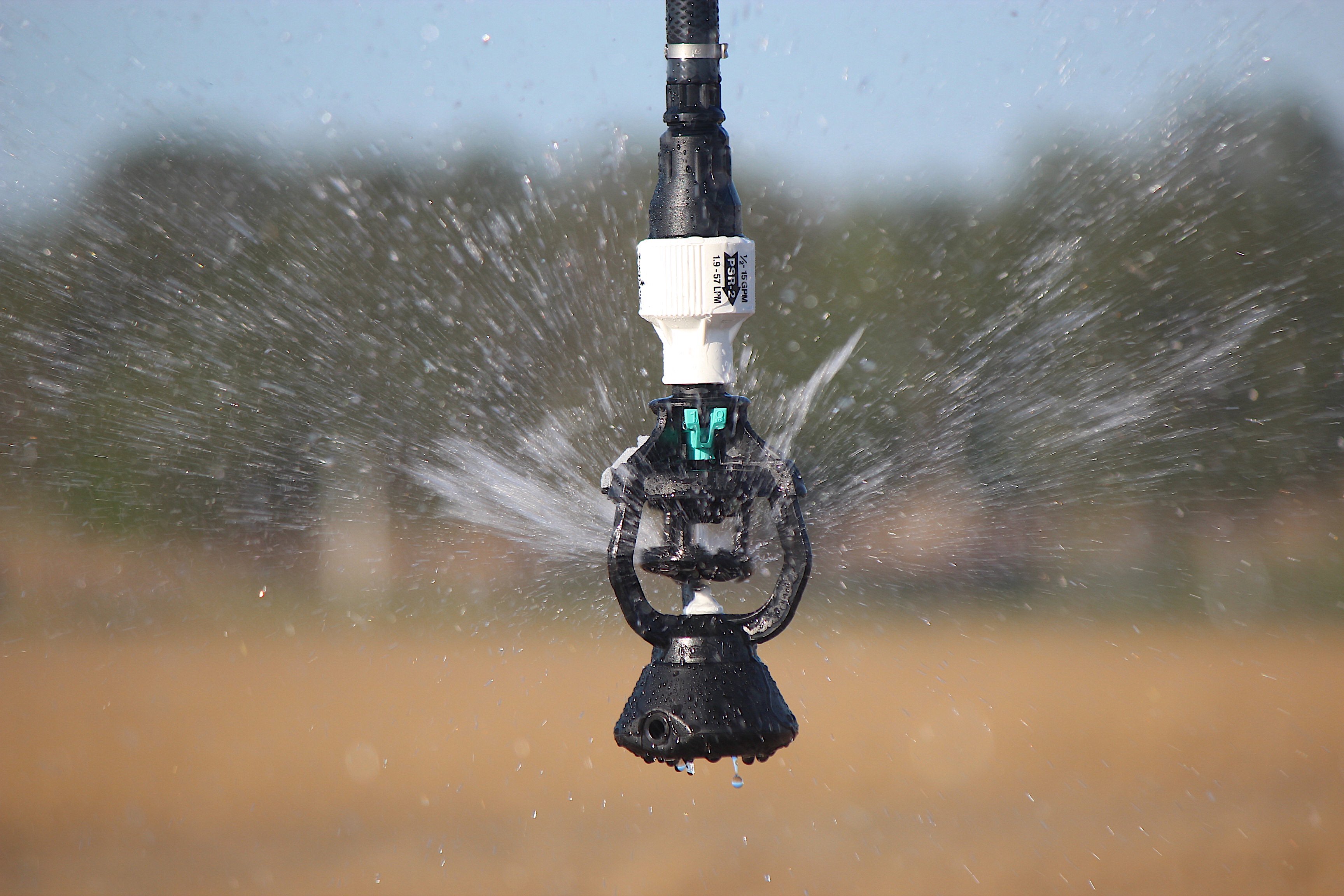

The China i-Wob is the most innovative pivot applicator on the market. Its unique rotary action combined with the wobbling action of the grooveddeflector delivers a consistent droplet size andoutstanding uniformity over a large area of coverage. This prevents wind-drift and provides a gentle, rain-like application of water to the soil.

Important: Nozzle is not included please search Nozzles and Parts to find UP3 nozzles. This is done this way to allow quantity discount on the i-wob itself and customization of nozzles for the entire span of the Center Pivot.

Features:

• The UP3 snap-in nozzle is easy to remove for cleaning or changing. To remove the nozzle simply pinch and pull; to install place and click

• The integrated base allows the applicator to be installed directly into a pressure regulator or onto a standard 3/4" NPT female connection with no special threads or fittings required

• Ultra-low application intensity to preserve soil integrity

• Low pressure operation - 10 to 20 psi (0.69 to 1.38 bar) - saves money and energy

• Exclusive below-the-nozzle weight eliminates the need for heavier, conventional drop weights

• Resilient wear sleeve cushions contact surfaces resulting in a longer wearing, more reliable product

• Two-year warranty on materials, workmanshipand performance

• Nozzle sizes are easily identified with color-coding and embossing on the ears, including half sizes. Warranted to maintain correct orifice size for five years

Installation Guidelines:

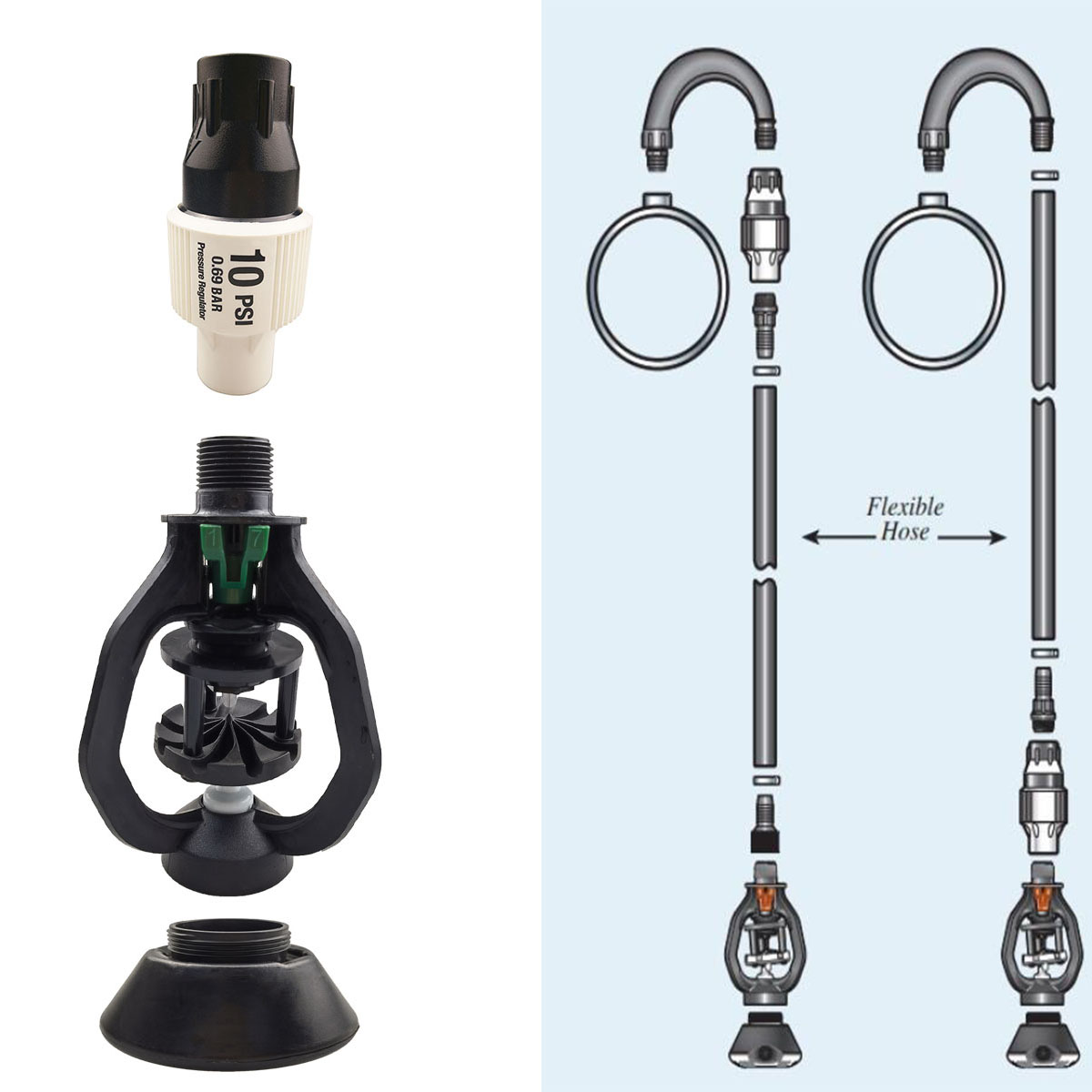

• Because of its off-center rotary action, it is necessary that the i-Wob be mounted with a minimum of 2 ft (0.6 m) reinforced flexiblehose above the applicator.

•  When using The One weight, never use another weight above the i-Wob.

• If you are using a conventional weight above the i-Wob, only use a threaded weight weighing at least 1.5 lbs. (0.7 kg) but not exceeding 1 ft. (0.31 m) in length. Please note that using a slipover drop weight is prohibited as it maycause premature failure of the drop assembly.

•
